TREND Mini Pocket Hole Jig

For fast and accurate joining of timber and plywood giving strong instant joints.

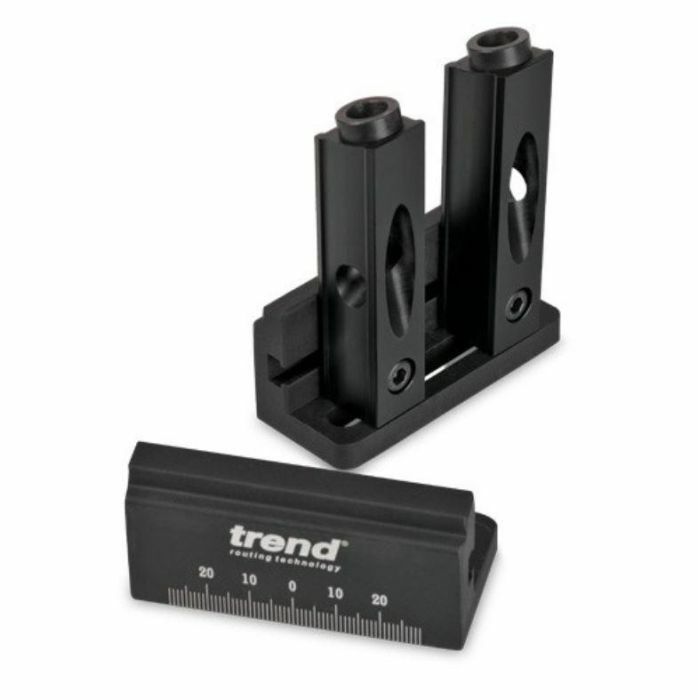

Supplied with two bases short and long.
Long base is used on edge of component, short base allows jointing into corners for refurbishment work.
Solid bushes with variable pitch of 18-54mm with sight arrows to aid pitch setting.
Use on timber, MDF, plywood and blockboard.
Allows a variety of joints to be created individually.
Uses square drive self tapping screws.
Workpiece can be handled immediately after gluing screwing creating time saving benefits.
Requires a clamp to secure mini pocket hole jig to component.
Technical data:

Material thickness min. – 16mm
Material thickness max. – 38mm
Material width min. – 38mm
Hole pitch – 18mm-54mm
Drill diameter – 9.5mm
Square drive bit size – No. 2
Screw sizes – No. 7 x 30mm
Supplied with:

50 x Dome head screws
Long base
Short base
HSS drill bit with collar
150mm Square drive bit
4mm A/F Hex key
2.5mm A/F Hex key
